ELECTRONIC BUILDING BLOCKS WITH FREE HARDWARE DESIGN

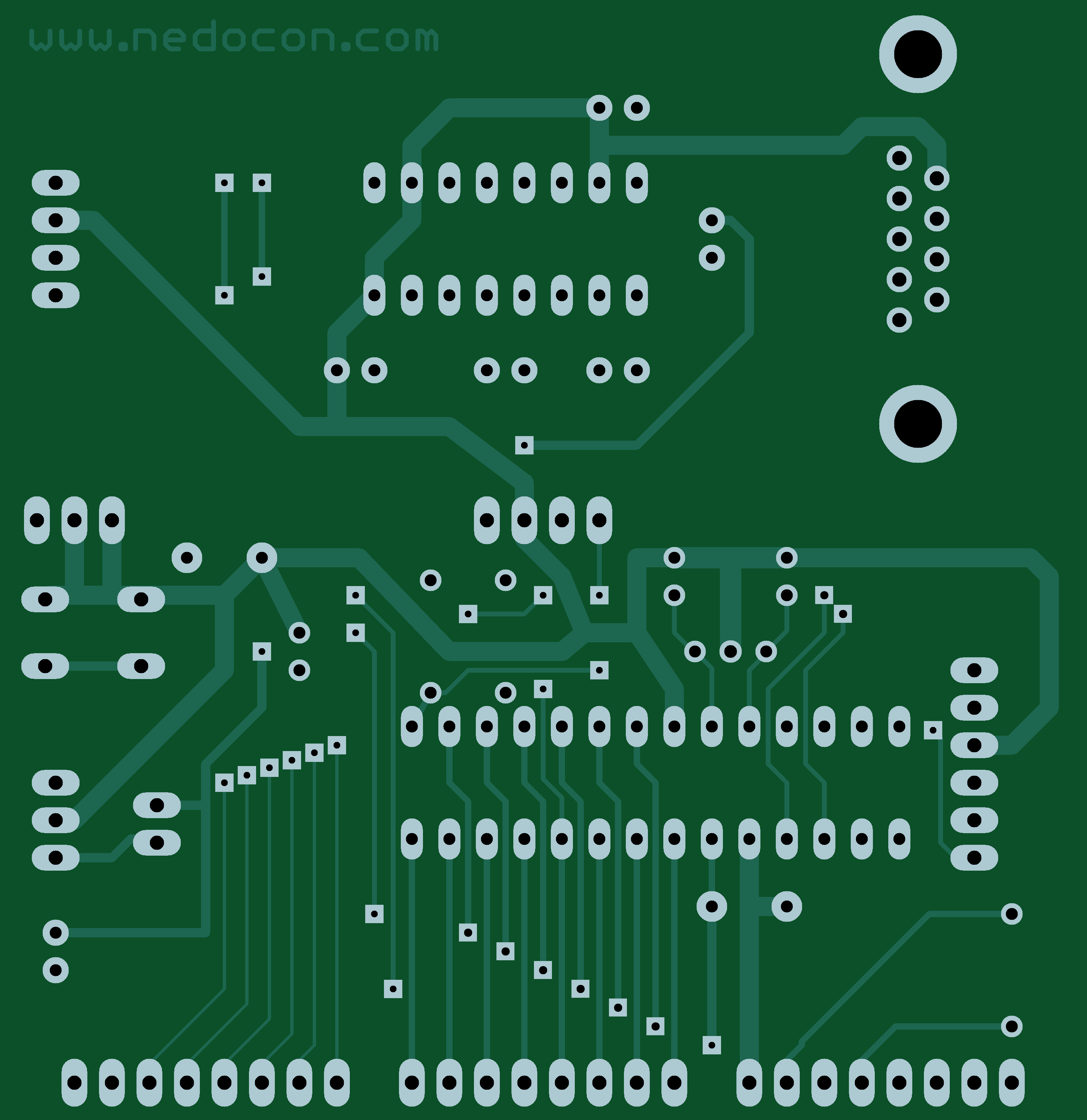

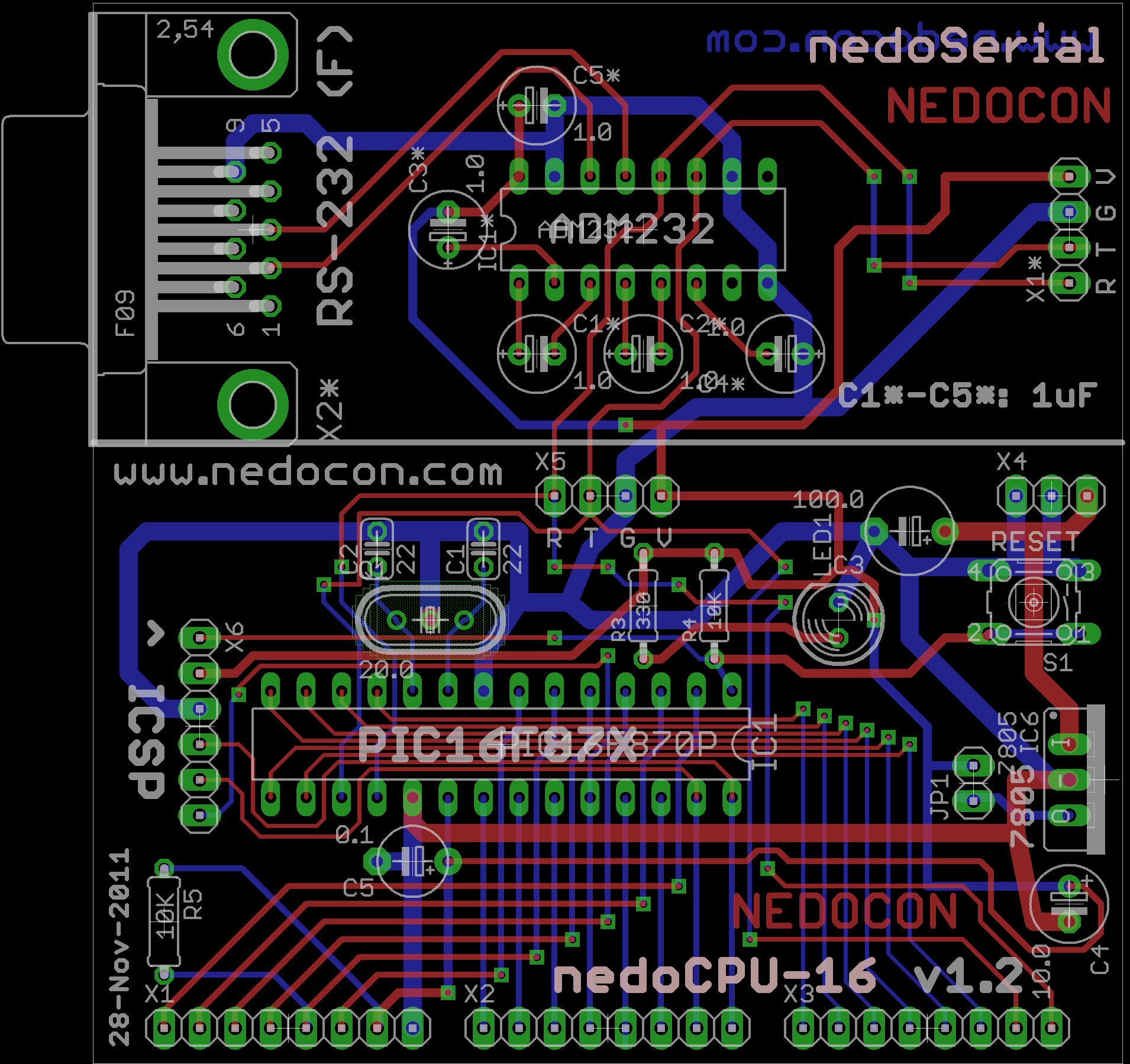

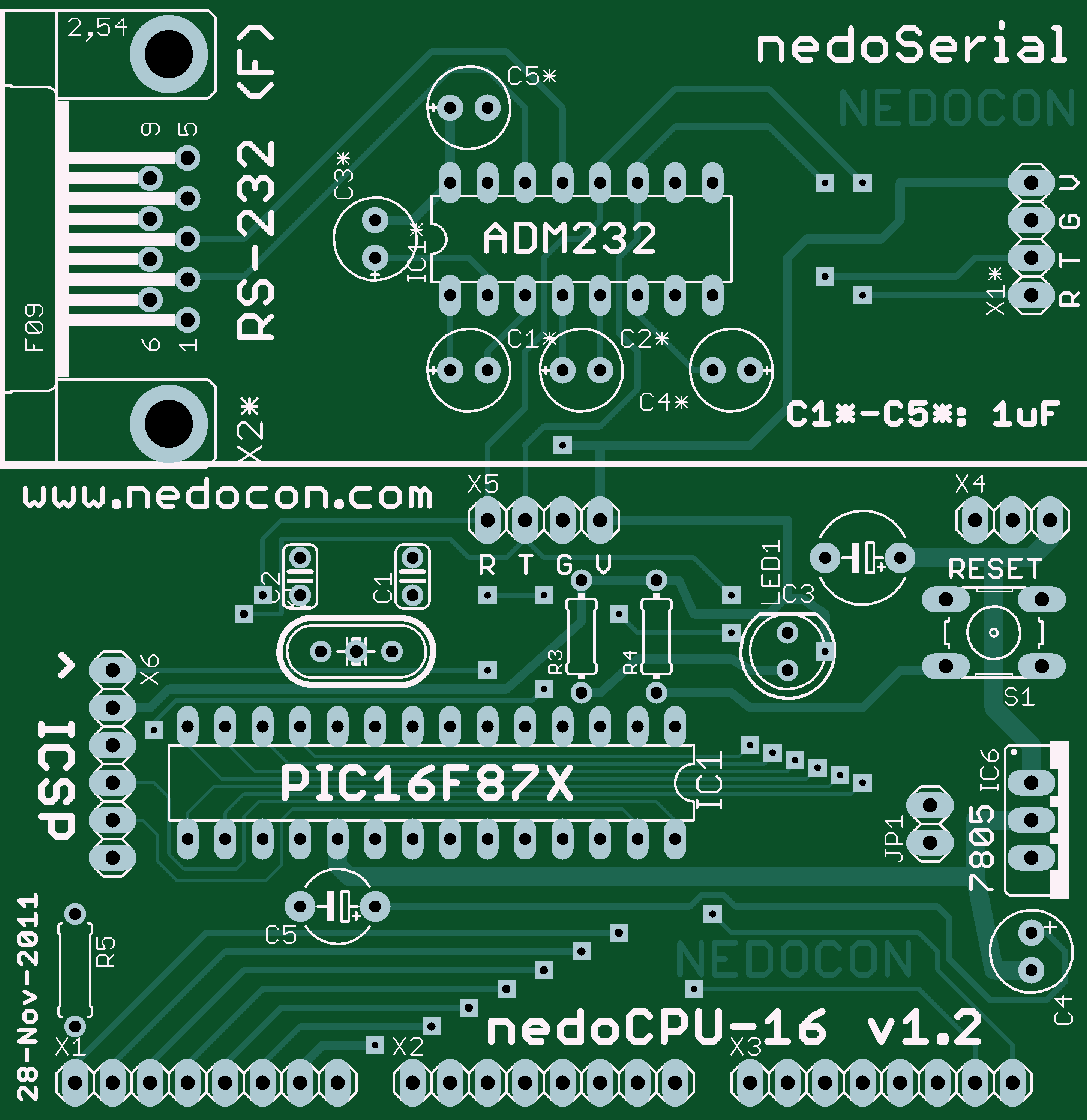

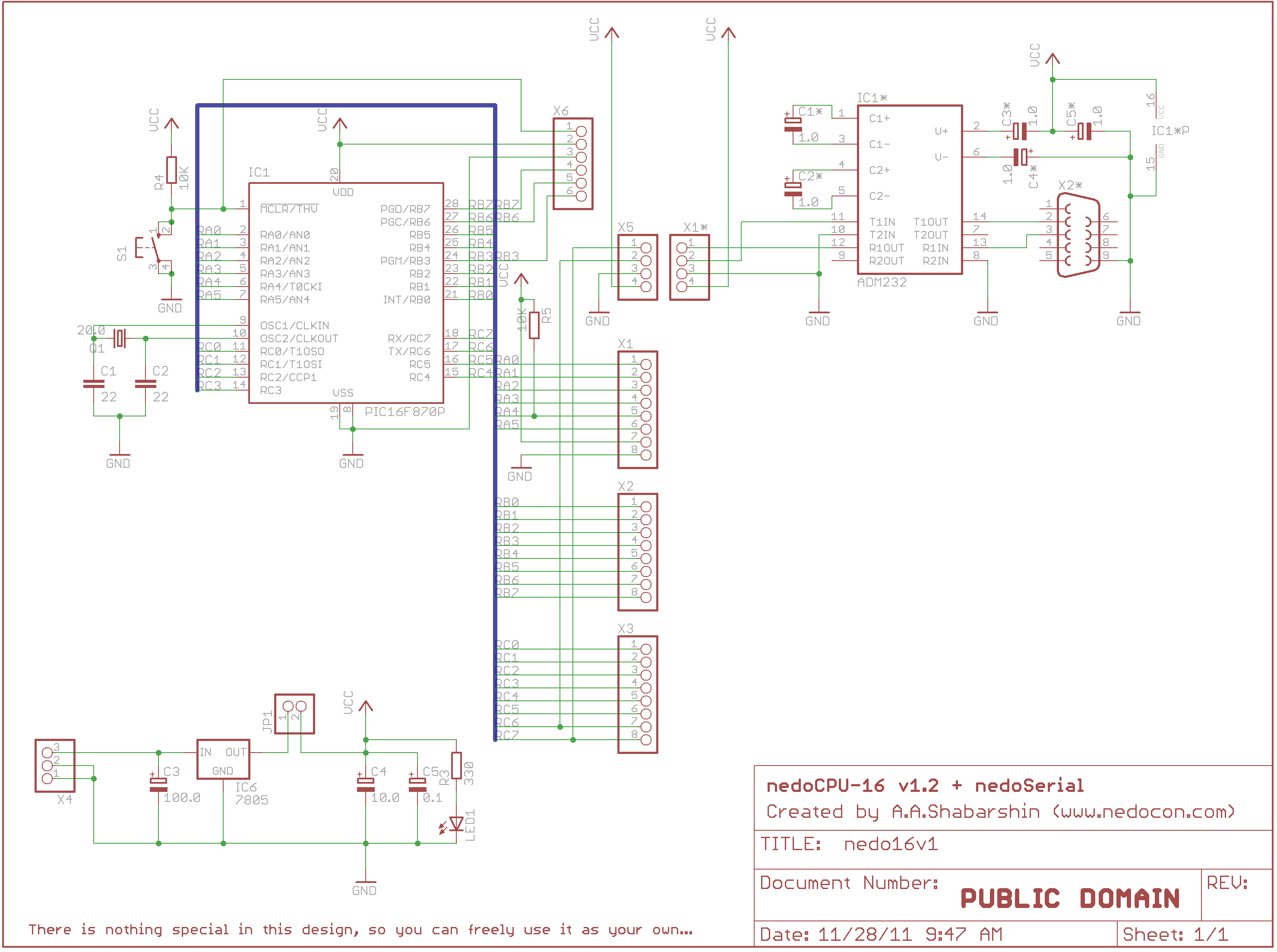

nedoCPU-16 - devboard for PIC16F87X (DIP28) with optional serial adapter


nedoCPU-16s:

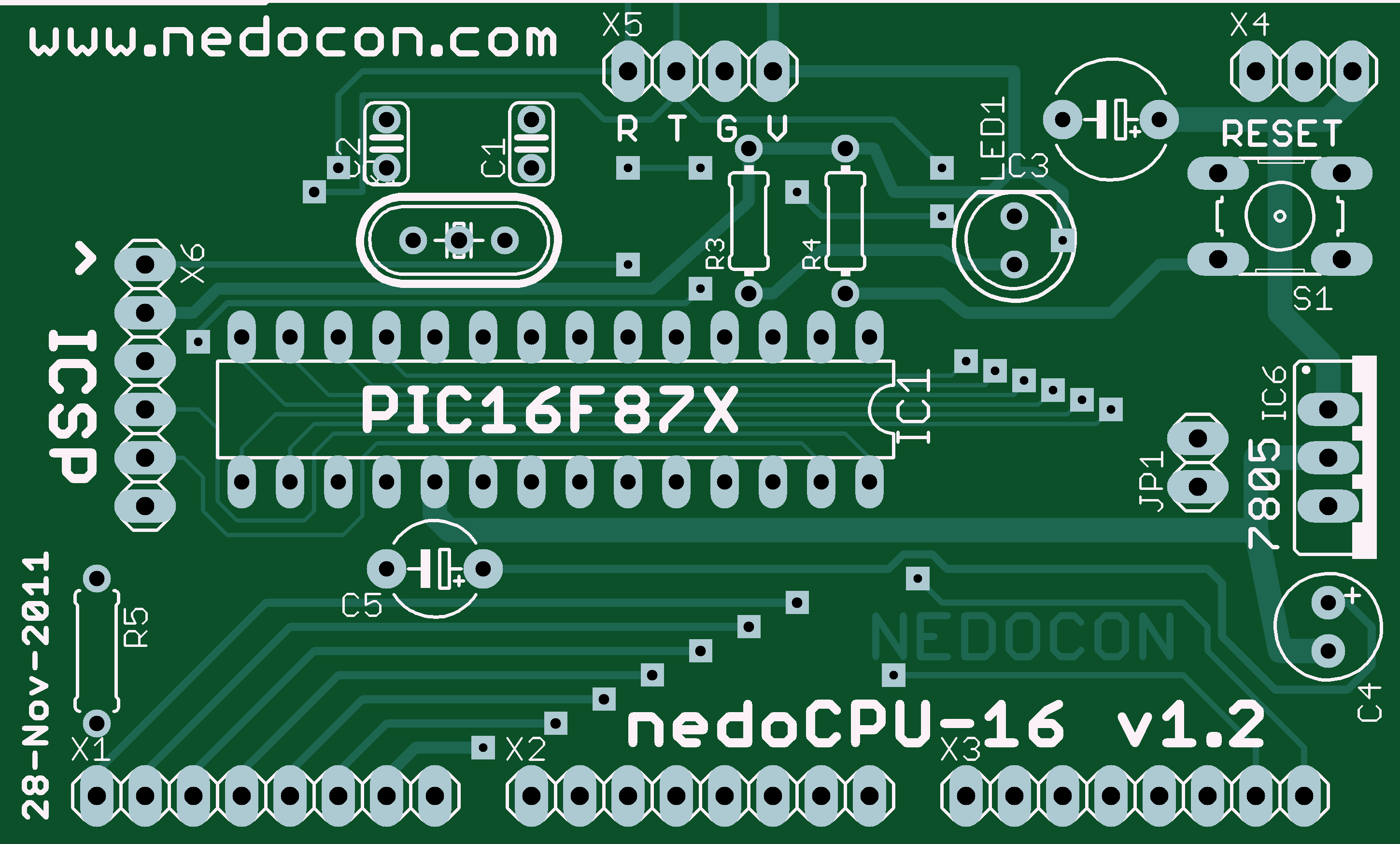

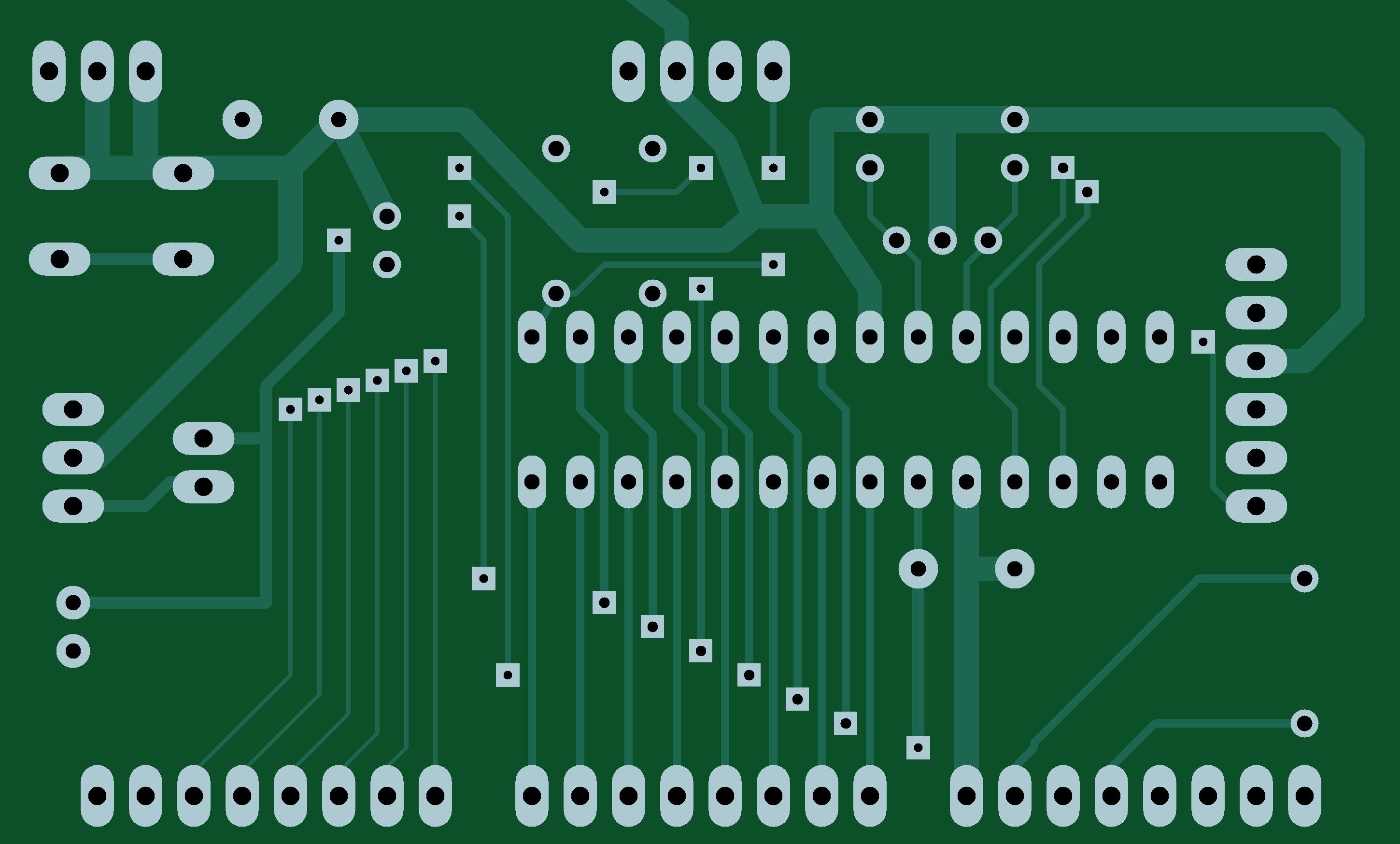

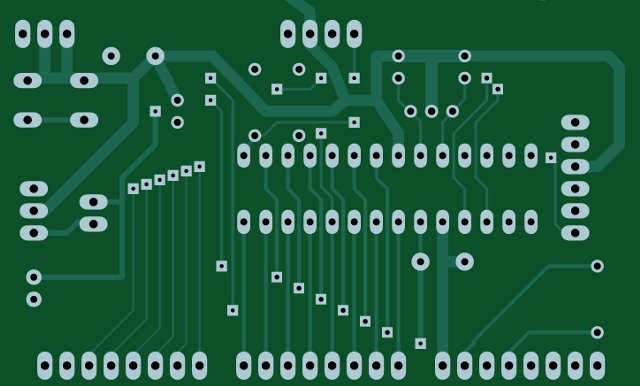

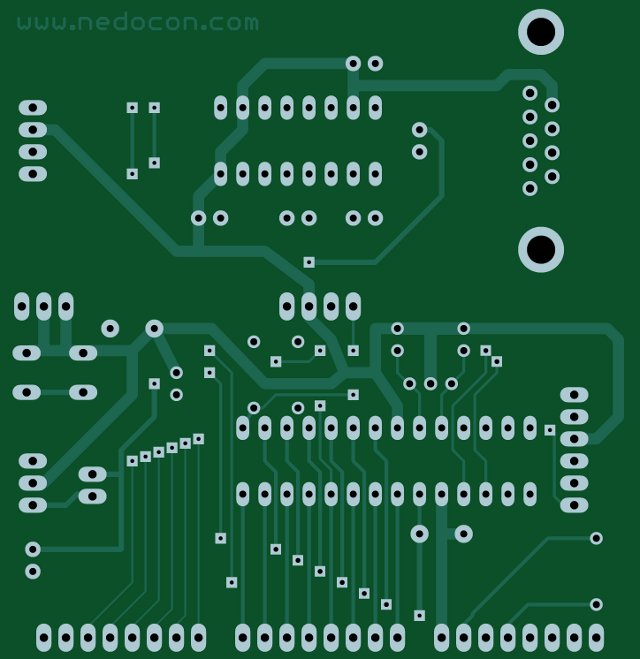

nedoCPU-16:

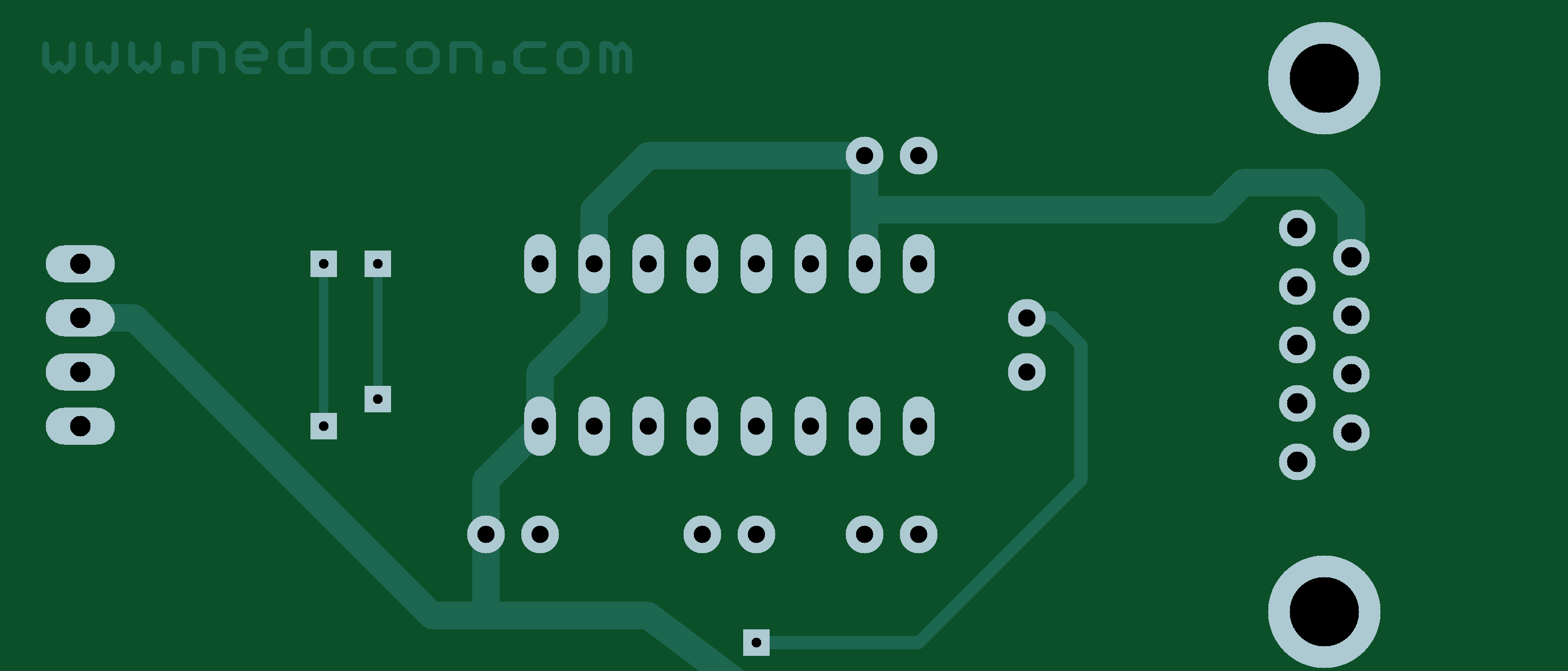

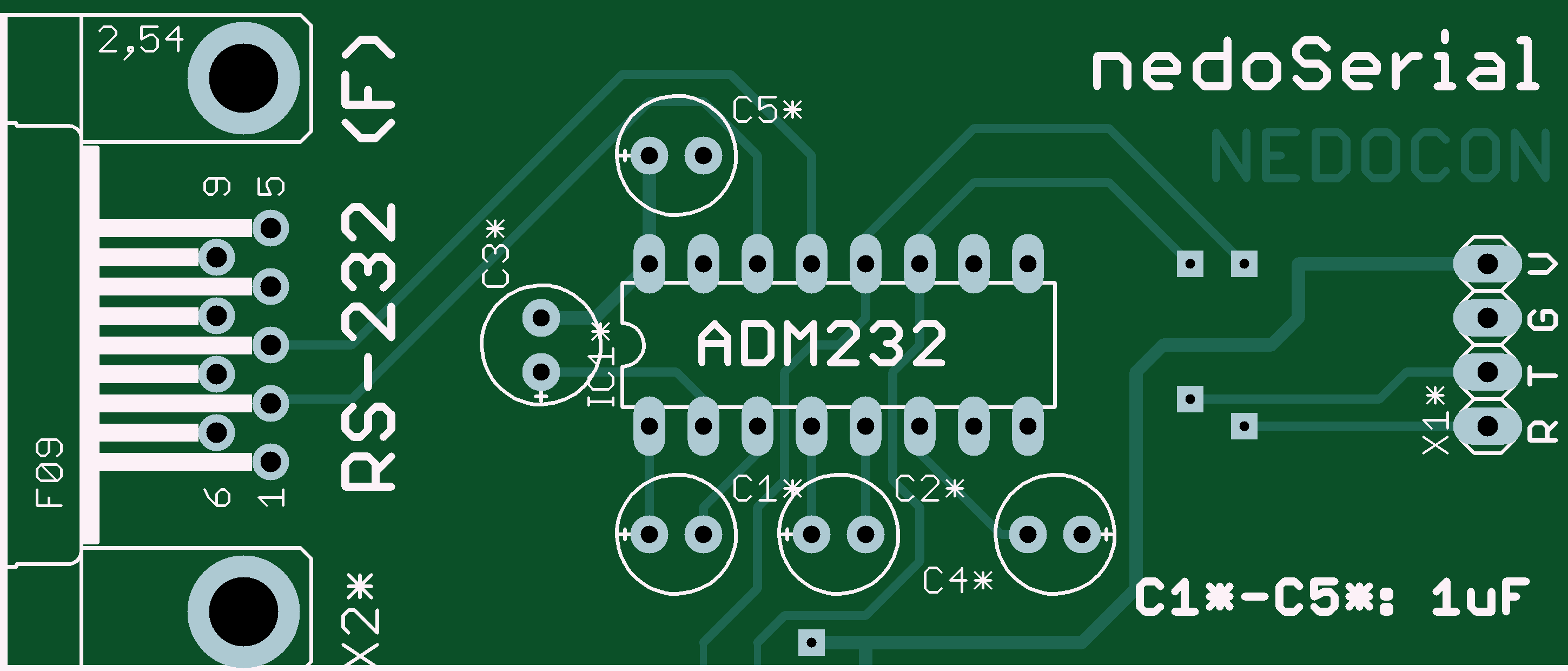

nedoSerial:


THESE DESIGNS ARE PUBLIC DOMAIN - YOU CAN USE IT ANYWHERE AS YOUR OWN!
shaos-p16.inc - useful macros for PIC16...
PDBLv1-2A2.inc - interface to the public domain bootloader PDBLv1
Public Domain Bootloader PDBLv1: HEX and C source
pdbl1hex.c - POSIX program to write HEX to the PIC16F870 through PDBLv1
P.S. Board nedoSerial may be used as an independent converter of RS-232 to TTL (5V)
